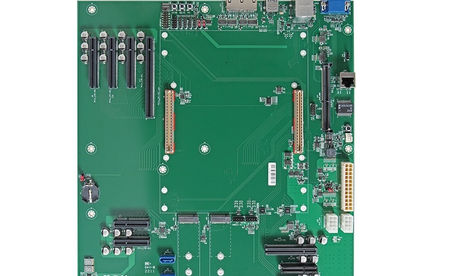

PCOM-C880

ATX Carrier board for COM-HPC Client module

ATX size form factor evaluation carrier board for COMHPC client module


Features

  • COM-HPC carrier board support COM-HPC client size A/B/C modules

  • ATX size form factor provides extra expansions slot, and follows the standard space mounting

  • Supports USB 3.2 Gen2, SATA, PCIe Gen4, 2.5G RJ45, Displayport

  • Support wide temperature -40°C to 85°C

  • Standard ATX PSU input

Specification

  • General

  • Produc : tProduct PCOM-C880

  • Form Factor : ATX size (305mm x 244mm)

  • Supported Module : COM-HPC client type , size A / B / C

  • General Function : RTC battery
    Postcode display
    BIOS SPI Socket Power BTN / Reset BTN
    Lid BTN / Sleep BTN
    RapidShutdown BTN

  • Audio codec : Realtek ALC888s

  • I/O Interface :

  1. SATA : 2 x SATA III

  2. USB : 4x USB 3.2 Gen2 + 6x USB 2.0

  3. Ethernet: 2x 2.5Gbe RJ45

  4. PCI Express : 2x PCIe 4.0 x16, 2x PCIe 4.0 x4, 2x M.2 M key, 1x PCIe x1 (for BMC)

  • Certification :

  1. Display : DefaultOptions DDI3x DPeDP1x DP

  2. Legacy I/O: GPIO12x GPIOI2C2x I2C header

  3. SMBus: 1x SMBUS header

  4. UART : 2x DB9 UART (Tx/Rx)GP

  5. SPI: 1x GP SPI header

  6. Others : Audio jack

  7. MIPI-CSI (for signal measurement purpose)

  • MECHANICAL & ENVIRONMENT

  1. Dimension : ATX 305mm x 244mm

  2. Power: DC INATX 24 pin  ATX 8 pin

  3. Storage Temperature : -40°C to 85°C

  4. Operation Temperature : -40°C to 85°C

  5. Certification: TBD

  6. MTBF : TBD

  7. Vibration : TBD
