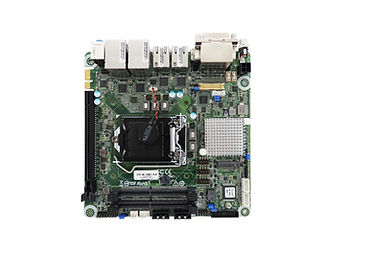

WADE-8132

Intel 8,9세대 (Coffelake), Q370

Supports Desktop Intel® 8th/9th Gen Core™ Processors thin Mini-ITX with DDR4 SO-DIMM up to 64GB, Display port, HDMI, DVI, LVDS, 4x GbE LAN, and TPM 2.0


Features

  • Intel® 8th/9th Gen Core™ Processors

  • Supports two SODIMMs DDR4 Non-ECC DRAM up to 64GB

  • Supports 1x Ethernet, 10x USB Ports , 2x SATA III Ports and Audio(Pin-header)

  • 1x PCIe x16 (Gen3), 1x mini-PCIe socket, 1x M.2 (Key M, 2242) for SSD, 1x M.2 (Key E, via converter)

  • TPM 2.0 (Through LPC header)

Specification

  • Processor: Intel® 8th/9th Gen Core™ Processors CPU in LGA1151 package

  • Chipset: Intel® Q370 Series

  • BIOS: AMI uEFI BIOS (SPI ROM)

  • Memory: Supports up to 64GB DDR4 2400/2666 Non-ECC on 2x SODIMM sockets

  • Storage Devices: 2x SATAIII ports

  • Watchdog Timer: Programmable by embedded controller

  • Hardware Monitoring: System monitor (Voltage,Fan Speed and Temperature)

  • Expansion Interface: - 1x PCIe x16 Gen3
    - 1x M.2 (Key M, 2242)
    - 1x M.2 (Key M, 2280)

  • SIO: NCT 6116D, support SMbus, GPIO (pin-header), TPM 2.0 (Through LPC header)

  • Audio: 2W speaker KIT through pin header

  • Ethernet: - Intel® i210 Ethernet controller
    - 4x RJ45 connectors on rear I/O

  • USB 2.0: 6x on pin header

  • USB 3.0: 4x on rear I/O

  • Graphic Controller: Intel® G en 9 graphic engine supports DirectX 12, OpenGL 4.6

  • Display Interface: - DP: 1x DP port on rear I/O, resolution up to 4K (4096x2304@60Hz)
    - DVI: 1x DVI port on rear I/O resolution up to 1920x1200 @ 60Hz
    - LVDS: 1x LVDS connector on board, resolution up to 1920x1200
    - HDMI: 1x HDMI port on rare I/O, resolution up to 4K
    (4096x2160@24Hz, 3840x2160@30Hz)

  • Dimension: 170mm(L) x 170mm(W)

  • Power Supply: 12V DC Input

  • Environment: - Operation temperature:0~60˚C
    - Storage temperature: -20~80˚C
    - Relative humidity: 5~95%, non-condensing

  • MTBF: 327,136 hours at 40°C
